Azure Firewall

Create an Azure Event Hub Namespace and Event Hub#

  • Azure Portal: Navigate to the Azure Portal.
  • Create a Namespace: Search for “Event Hubs” and create a new Event Hub namespace.
  • Create an Event Hub: Within the namespace, create an Event Hub (e.g., “firewall-logs”).

Configure Azure Firewall to Send Logs to Event Hub#

  • Azure Firewall Policy: Go to the Azure Firewall policy associated with your firewall.

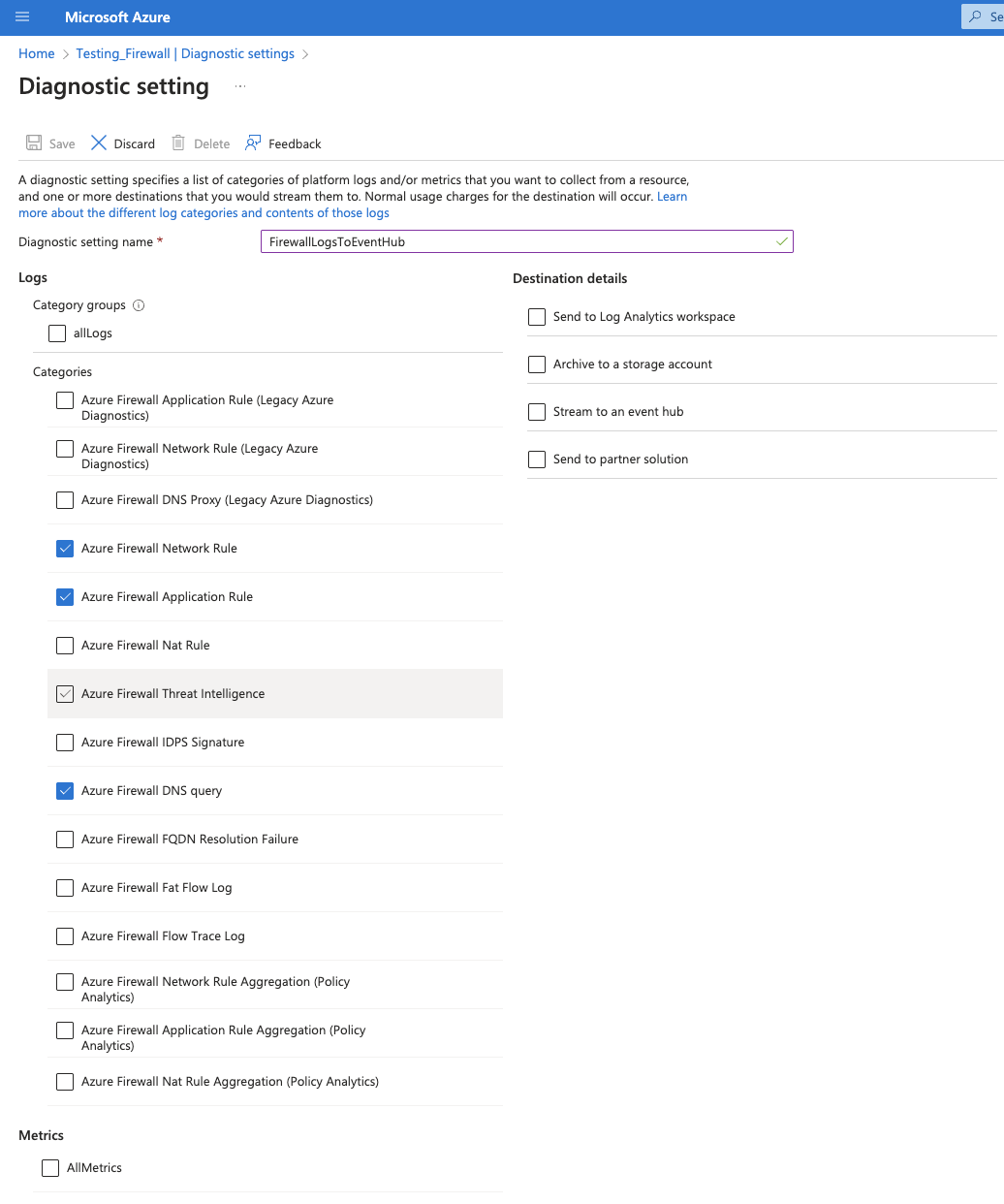

  • Diagnostic Settings: Under “Diagnostics”, create a new diagnostic setting.

    • Name: Provide a name for the setting (e.g., “FirewallLogsToEventHub”).
    • Destination: Choose “Stream to an Event Hub” and select the Event Hub namespace and hub you created.
    • Logs: Select the following:
      • “Azure Firewall Network Rule”
      • “Azure Firewall DNS Query”
      • “Azure Application Network Rule” (if applicable)
    • Enable: Select SAVE to enable the diagnostic setting.
  • Event Hub: Go to your Event Hub.
  • Consumer Groups: Create a new consumer group (e.g., “securonix-consumer-group”).

You will need to provide the following to SolCyber:

  • Event Hub Namespace

  • Event Hub Name

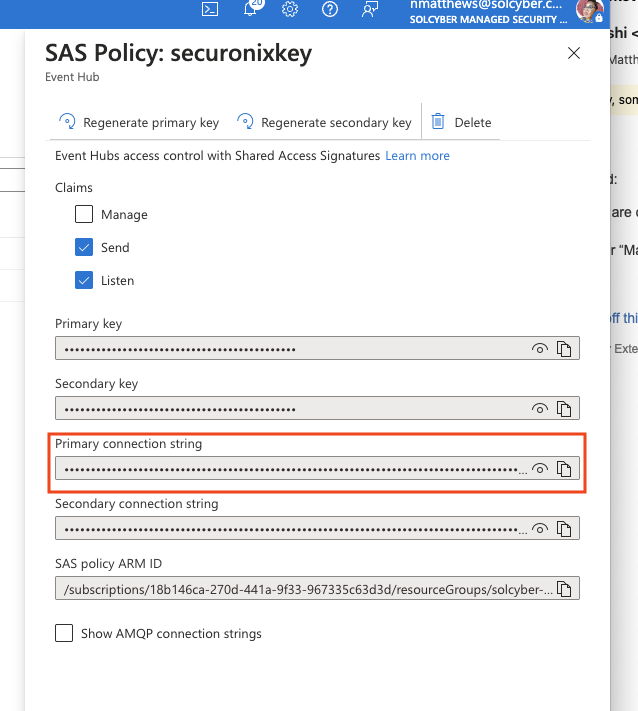

  • EventHub Namespace SAS Key Name (E.g., RootManageSharedAccessKey)

    • EventHub Namespace SAS Key Primary Connection String
