Log Ingestion Appliance - Virtual

SolCyber uses a log ingestion appliance to consume logs from your on-premise sources. We offer a virtual appliance or a hardware appliance.

Virtual log ingestion appliances can be deployed for most hypervisors:

  • VMWare: using a SolCyber-provide OVA file.
  • Hyper-V and other hypervisors: Using a SolCyber-provided deployment script that can be run after configuring a VM running a supported Operating System

Log Ingestion Appliance Setup Guide - VMware#

Prerequisites #

Ensure that the following prerequisites are met before you proceed:

Requirement TypeRequirementDescription
ServerResources
  • 2 CPU cores
  • 8 GB of RAM
ServerHard Drive
  • at least 200 GB available for use
Firewall PortsSNYPR ConsolePlease ensure that your firewall allows the Ingestion Appliance to communicate outbound on TCP/443
Firewall PortsKAFKA BrokersPlease ensure that your firewall allows the Ingestion Appliance to communicate outbound on UDP/9093
Firewall PortsIngester Heartbeat and ManagementPlease ensure that your firewall allows the Ingestion Appliance to communicate outbound on UDP/9993
Firewall PortsSyslog sources

SolCyber will instruct you as to which ports will be in use for data ingestion.

Note: Use TCP for Syslog sources to improve the reliability of data transfer.

Firewall WhitelistIngester Health MonitoringPlease ensure that your firewall allows outbound TCP traffic to zabbix.SolCyber.us on port 443 from your Ingester Appliance

Step 1: Transfer OVA to VMware#

Download the OVA file provided by SolCyber and transfer to the the hypervisor. If possible, download the OVA archive directly to the ESXi server - this will minimize the transfer time as the OVA is a large file.

Step 2: Select Creation Type#

Begin by selecting the creation type for your new virtual machine.

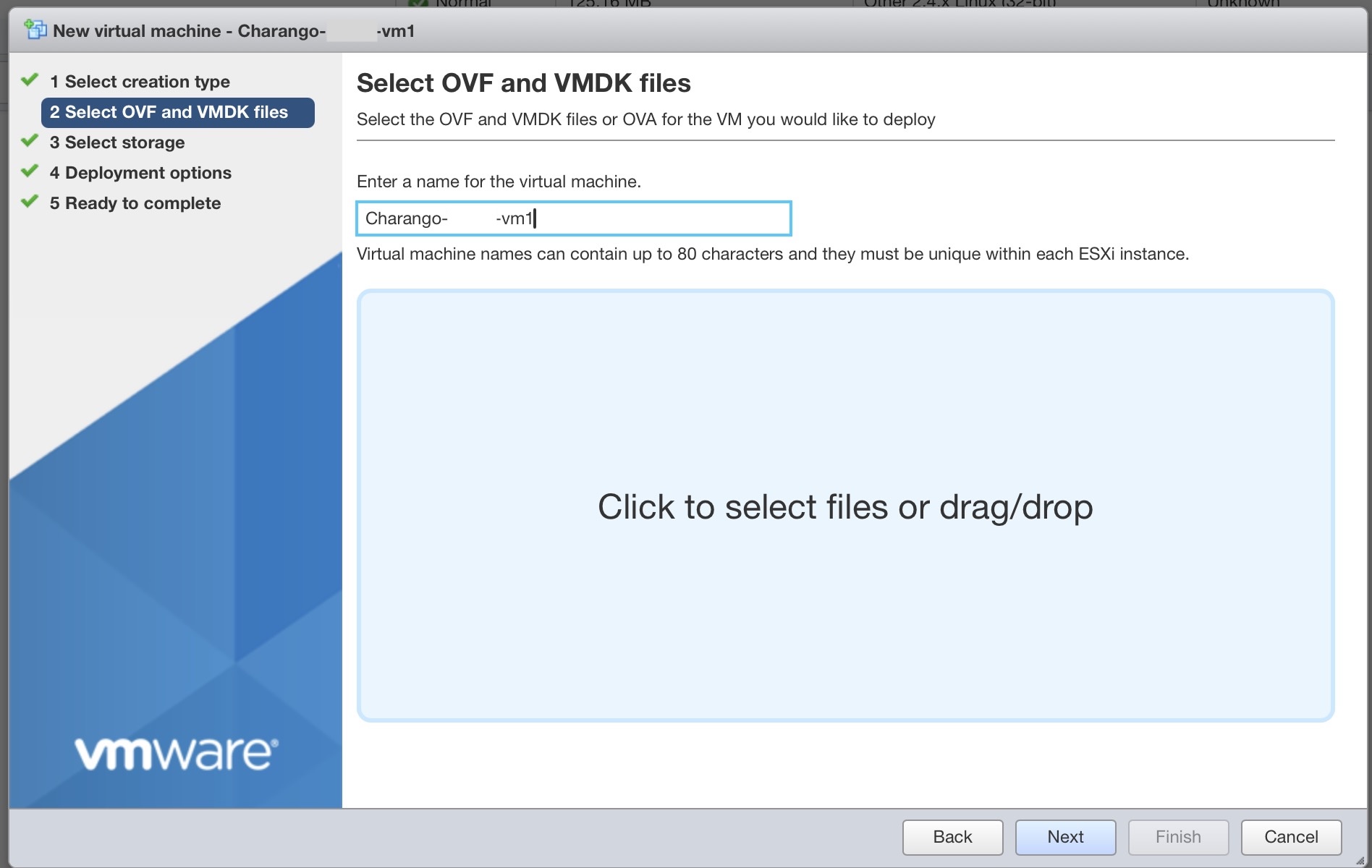

Step 3: Select OVF and VMDK Files#

Select the OVF and VMDK files or OVA for the VM you would like to deploy. You can click to select files or use drag and drop. Make sure to provide a unique name for your virtual machine (up to 80 characters).

Select Creation type

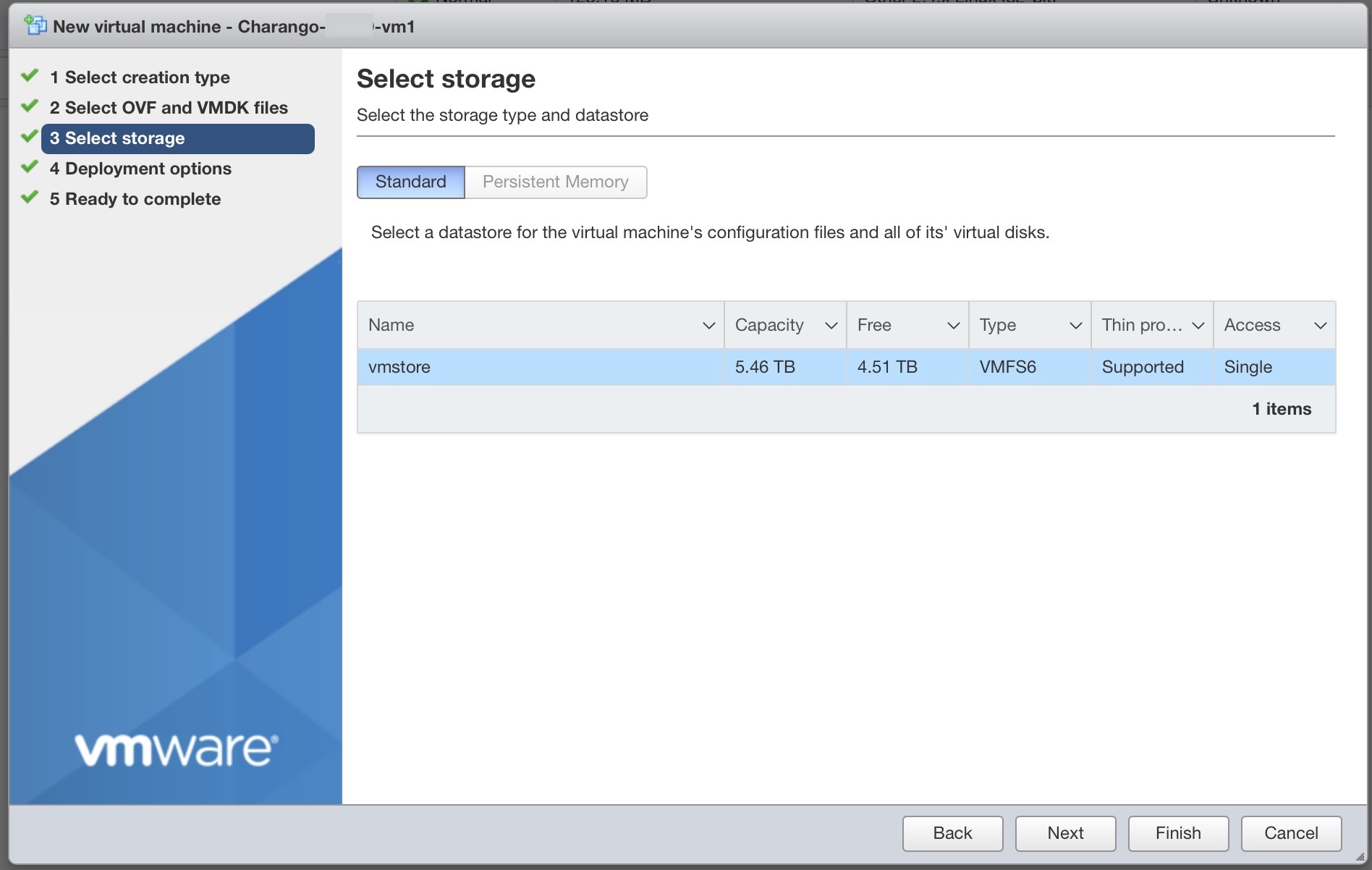

Step 4: Select Storage#

Choose a datastore for your virtual machine’s configuration files and virtual disks. In this example, the “vmstore” datastore with 4.51 TB free space is selected.

Select Storage

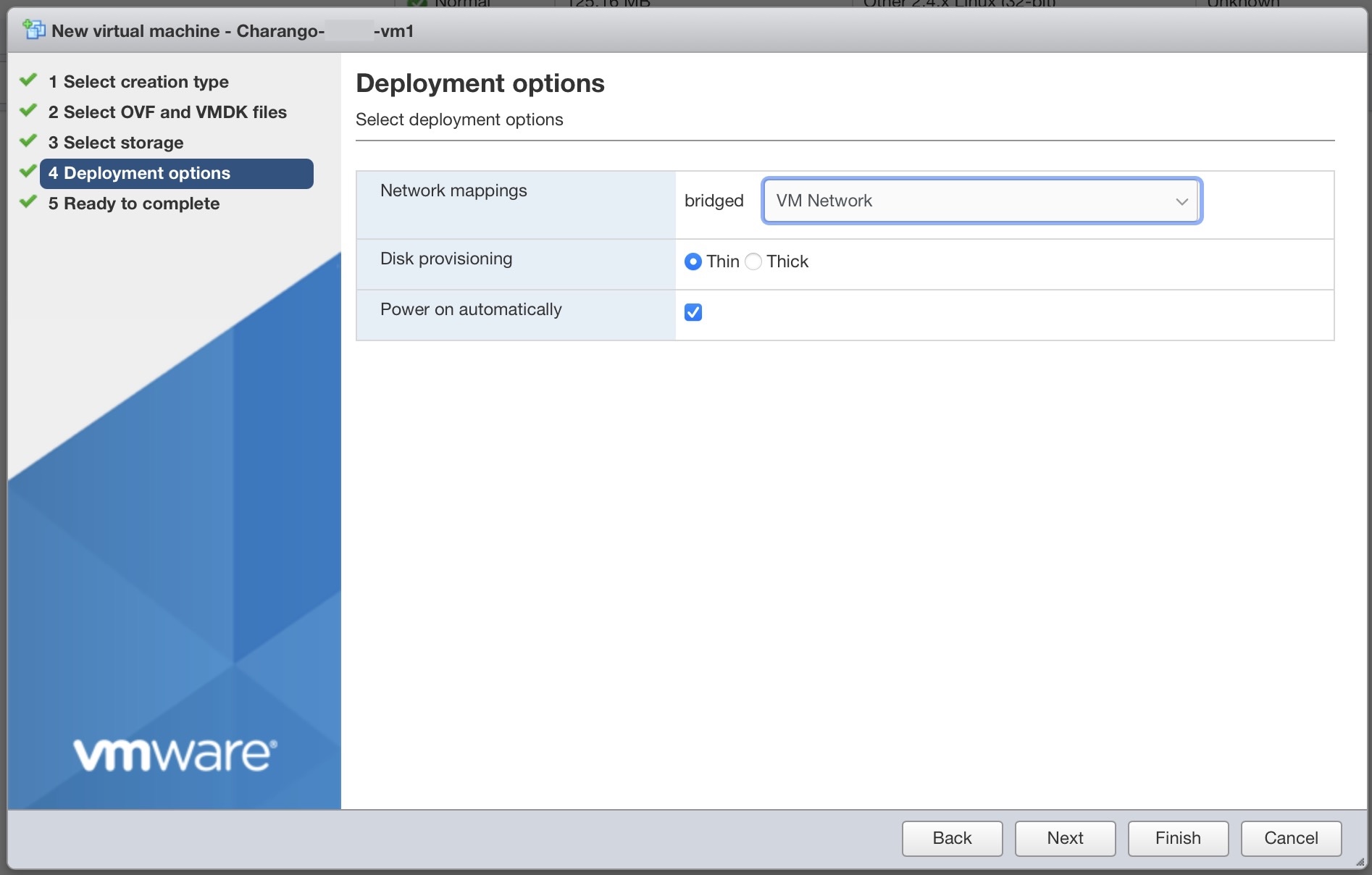

Step 5: Configure Deployment Options#

Set the deployment options for your virtual machine:

  • Network mappings: Set to “bridged: VM Network”
  • Disk provisioning: Select “Thin” provisioning
  • Power on automatically: Check this option if you want the VM to start immediately after deployment

Deployment options

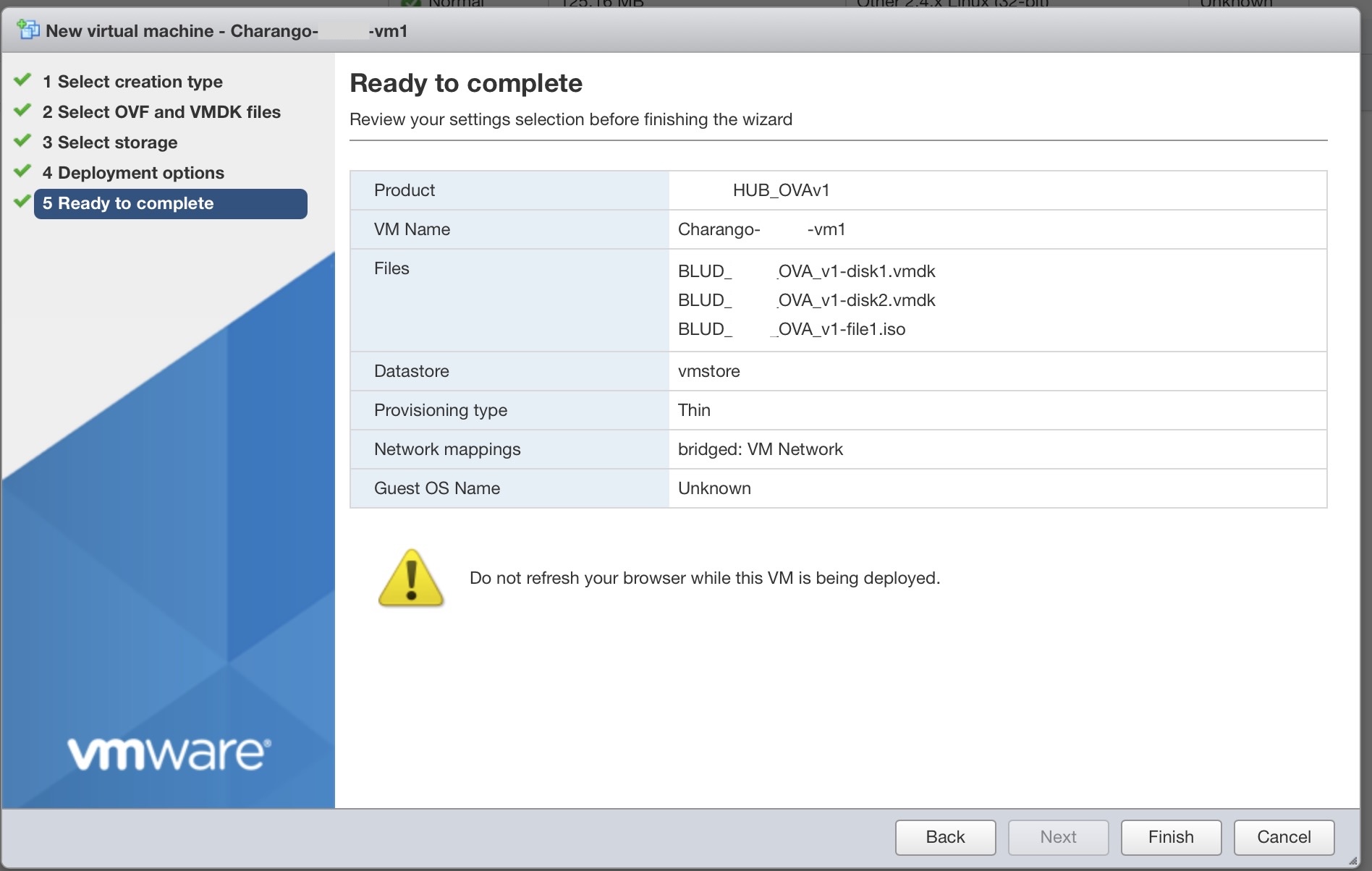

Step 6: Review and Complete#

Review your settings before finishing the wizard. The summary shows:

  • Product: HUB_OVAv1
  • VM Name: Charango-OVA-vm1
  • Files:
    • HUB_OVA_v1-disk1.vmdk
    • HUB_OVA_v1-disk2.vmdk
  • Datastore: vmstore
  • Provisioning type: Thin
  • Network mappings: bridged: VM Network

Ready to Complete

⚠️ Important: Do not refresh your browser while this VM is being deployed.

Click “Finish” to complete the deployment process.

Step 7: Confirm Installation#

The final step is to check that the VM is listed in the ESXi console as expected.

Log Ingestion Appliance Setup Guide - Hyper-V#

Please note, the below instructions are for installing the virtual appliance on Microsoft Hyper-V only.

Prerequisites #

Ensure that the following prerequisites are met before you proceed:

Requirement TypeRequirementDescription
ServerOperating SystemUbuntu 22.04
ServerResources
  • 2 CPU cores
  • 8 GB of RAM
ServerHard Drive
  • at least 50GB HD for OS
  • secondary unformatted drive of 150GB or more
ServerAppliance Configuration Files

Ensure the following files are copied to the server:

  • new_hub_v1.sh
  • sc-answer.ini
  • sc_payload_xxxx
  • SNYPR-SecuronixHubAgent-xxxx.tar file
Firewall PortsSNYPR ConsolePlease ensure that your firewall allows the Ingestion Appliance to communicate outbound on TCP/443
Firewall PortsKAFKA BrokersPlease ensure that your firewall allows the Ingestion Appliance to communicate outbound on UDP/9093
Firewall PortsSolCyber Remote AccessPlease ensure that your firewall allows the Ingestion Appliance to communicate outbound on UDP/9993
Firewall PortsSyslog sources

SolCyber will instruct you as to which ports will be in use for data ingestion.

Note: Use TCP for Syslog sources to improve the reliability of data transfer.

Step 1: Verify Prerequisites#

  • Confirm you’re running Ubuntu 22.05.x LTS
  • Ensure your main drive is at least 50GB for the OS.
  • Check for a secondary, unformatted HD of at least 150GB.
  • Verify the system has at least 2 CPU cores and 8GB RAM.
  • Gather your new_hub_v1.sh script, answer file (sc-answer.ini), sc_payload_xxxx, and Securonix HUB installer tar (4 files total).

Step 2: Validate the Environment#

  • Double-check your disks with lsblk -o NAME,SIZE,FSTYPE,MOUNTPOINT,LABEL,UUID
  • Make sure your secondary HD shows up and is unmounted & unformatted.

Step 3: Installation#

  • copy over the installer and support files (4 files total) *(scp recommended)
  • run installer: sudo bash new_hub_v1.sh
  • choose option 1 from the menu (Auto Install)
  • run installer again (sudo bash new_hub_v1.sh), and select menu item named: “Enable/Disable Securonix Services”. choose enable (“e”) to continue *(pay attention to the results)
  • reboot: sudo reboot
